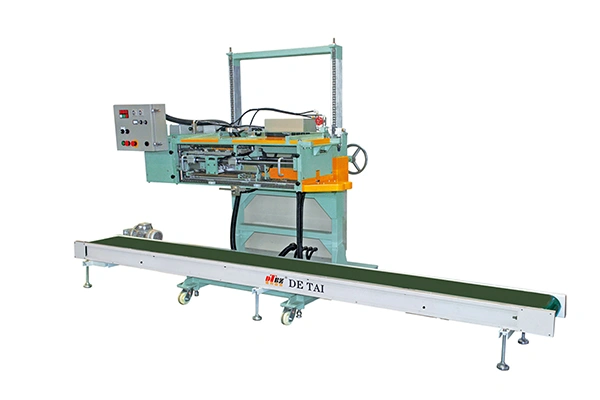

Impulse Bag Sealer

IMS

Impulse Bag Sealer

Continuous bag sealing machine for heavy-duty PE film bags

The IMS impulse sealing machine is designed for continuous and rapid sealing of heavy-duty PE film bags. Its pulse-controlled heating system allows the temperature to adjust quickly, making it suitable for fast-paced production environments.

Request a Quote
Features
  • A layer of PTFE film protects the heating tube and prevents material adhesion.
  • The sealing system presses the bag firmly during sealing to improve heat efficiency, making it suitable even for powder-filled bags.
  • The impulse-heating design enables extremely fast warm-up and allows the machine to begin operation almost immediately.
  • When synchronized with a conveyor, it delivers continuous sealing with adjustable speed control.
  • The sealing height can be adjusted, and the compact design fits easily into existing production lines. A 5 mm heating wire with protective housing provides fast sealing performance while keeping power consumption low, making it ideal for facilities that need high-speed, efficient sealing.
Impulse Bag Sealer
Technical Specifications
Heating width 5mm
Impulse control Temperature control
Heating stroke 450mm
Max. bag width 550mm

Specifications are subject to change without prior notice.
Product images may differ from the actual model configuration.
Conveyor speed (mm/s) Sealing time (s) Capacity (bags/hr)
6 3.9 600
8 2.78 800
10 2.1 1000
12 1.65 1200
14 1.33 1400
16 1.09 1600
Related Products
See More
Pneumatic Impulse Bag Sealer
QF Pneumatic Impulse Bag Sealer

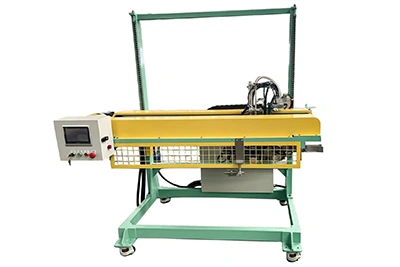

Vacuum Impulse Bag Sealer
HL-Q Vacuum Impulse Bag Sealer

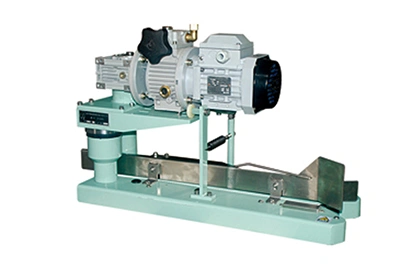

Bag Top Folding Device / Bag Infeed Device (Belt Type)
