Bagging Scale for Bagging & Palletizing System

  • Home
  • Bagging and Palletizing System
  • Bagging Scale
  • Gravity Dosing Scale

Gravity Dosing Scale

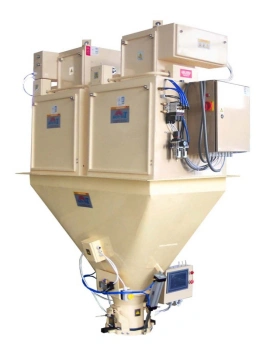

Gravity Dosing Scale (Double Scale)
Gravity Dosing Scale (Double Scale)
TCDZ50-B2
  • Weighing range: 20-50kg
  • Max. capacity: 15bags/min
  • Accuracy: ≦±0.2%FS
  • Power: 0.5kW
  • Power supply: AC 220V 50Hz
  • Control voltage: DC 24V
TCDZ30-B2
  • Weighing range: 5-20kg
  • Max. capacity: 15bags/min
  • Accuracy: ≦±30g
  • Power: 0.5 kW
  • Power supply: AC 220V 50Hz
  • Control voltage: DC 24V
  • Suitable material: feed mill materials

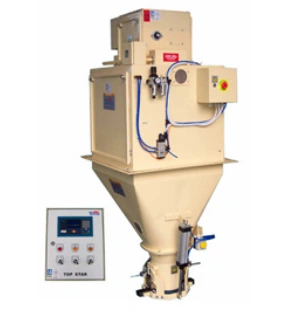

Gravity Dosing Scale (Single Scale)
Gravity Dosing Scale (Single Scale)
TCDZ50-B1
  • Weighing range: 20-50kg
  • Max. capacity: 10bags/min
  • Accuracy: ≦±0.2%FS
  • Power: 0.3kW
  • Power supply: AC 3-phase 380V 50Hz
  • Control voltage: DC 24V
TCDZ30-B1
  • Weighing range: 5-20kg
  • Max. capacity: 9bags/min
  • Accuracy: ≦±30g
  • Power: 0.2kW
  • Power supply: AC 3-phase 380V 50Hz
  • Control voltage: DC 24V
  • Suitable material: feed mill materials
