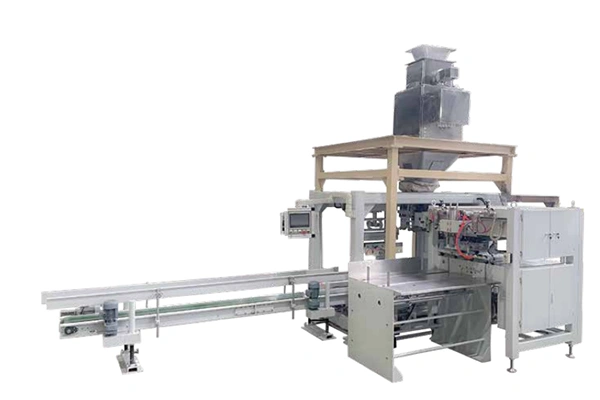

Automatic Open-Mouth Bagging Machine

Fully automatic open-mouth bagger for filling granular and powder products into pre-made open-mouth bags

The DTB automatic bagging machine is designed for flexible use across a wide range of bag materials, including laminated woven bags, kraft paper bags, heavy-duty PE film bags, and envelope-style bags. Its structure supports high-speed production with a capacity of up to 800 bags per hour, making it suitable for plants that need both speed and stable performance.

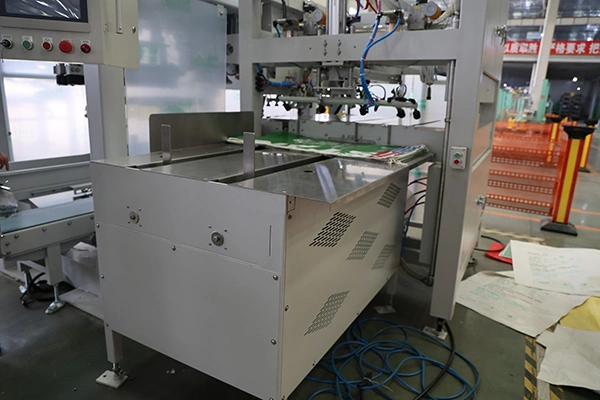

The system uses a stack-type bag magazine equipped with vacuum detection and low-bag alarms, ensuring steady bag supply without jamming. A full negative-pressure monitoring setup helps identify bag defects early; if a bag does not meet requirements, the system rejects it automatically. If a bag is not clamped correctly, the weighing scale will not release material, preventing spills and ensuring clean, controlled filling. The bag-holding trolley is reinforced and driven by a servo motor for precise motion control. This design keeps the bag mouth straight throughout the process, supporting smooth filling, clean transfer, and reliable downstream sealing.

Technical Specifications


Model	DTB-Z	DTB-X	DTB-Y
Machine dimensions (L×W×H)	3100×3000×2700mm (excluding upright bag conveyor and weighing scale)	3000×3000×2500mm (excluding upright bag conveyor and weighing scale)	3100×3000×2700mm (excluding upright bag conveyor and weighing scale)
Applicable bag materials	Woven bags, PE bags	Woven bag	Woven bags, PE bags
Applicable bag styles	Flat-top bags, M-gusset bags	Flat-top bags	Flat-top bags, M-gusset bags
Optional closing methods	Folding + sewing, heat sealing Inner heat sealing + folding + sewing	Folding + sewing	Folding + sewing, heat sealing Inner heat sealing + folding + sewing
Applicable bag size	Length 700-1000 mm Width 500-650mm	Length 800-1100 mm Width 500-700mm	Length 700-1000 mm Width 500-650mm
Bag magazine capacity	200	200	200
Filling range	20-50kg/bag	20-50kg/bag	20-50kg/bag
Capacity	500-800 bags/hr (depending on material flow and bulk density)	400-600 bags/hr (depending on material flow and bulk density)	400-600 bags/hr (depending on material flow and bulk density)
Power supply	AC 220V/380V ±5%, 50 Hz±1%, three-phase four-wire
Peak power	15kW	15kW	15kW
Air supply	0.5–0.7MPa, 140Nm³/hr, inlet pipe diameter 1inch
Operating temperature	–5°C to 40°C, dew point –40°C

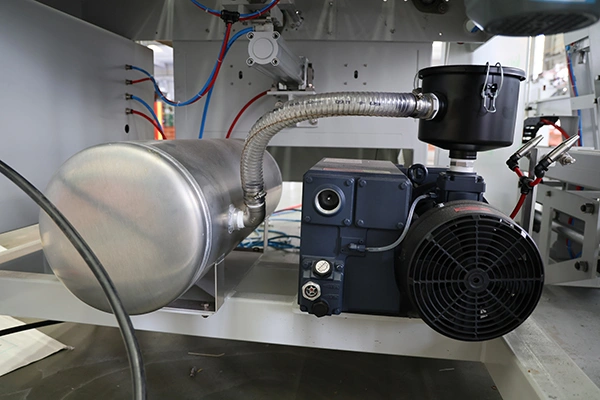

Vacuum system	Integrated rotary-vane vacuum pump

Specifications are subject to change without prior notice.
Product images may differ from the actual model configuration.

Features

This open-mouth bagger works with a wide range of bag types, including laminated woven bags, kraft paper bags, envelope-style bags, and heavy-duty PE film bags. The mechanical system supports up to 800 cycles per hour, allowing stable and efficient operation.
The stacked bag magazine is equipped with a vacuum-detection system and a no-bag alarm to keep bag feeding smooth and uninterrupted. A negative-pressure monitoring system runs throughout the process to identify bag defects in real time. If a bag fails quality checks, the bagging machine automatically rejects it; if the bag is not firmly clamped, the weighing scale will not release material.
