Automatic Open-Mouth Bagging Machine
Request a Quote

3CM-P

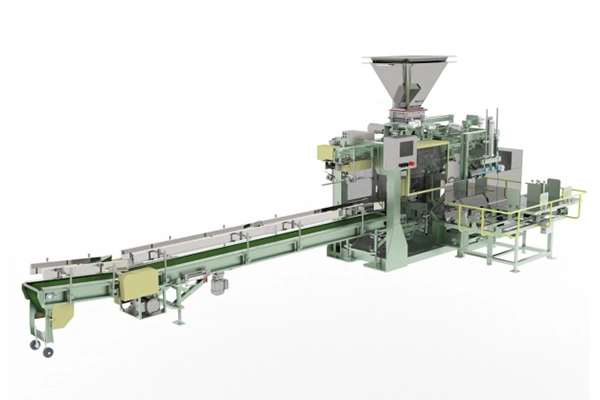

Automatic Open-Mouth Bagging Machine

Fully automatic open-mouth bagger for filling granular and powder products into pre-made open-mouth bags

The automatic open-mouth bagging machine is designed for flexible, steady, and continuous operation in bulk-material packaging lines. It handles a wide range of bag types, including paper bags, PE heavy-film bags, and laminated woven bags. The system supports flat-top bags, M-fold bags, and envelope-type bags within a 20–50 kg filling range. With an output of 500–800 bags per hour, it is a practical solution for chemical plants, feed mills, grain processors, and other operations that require consistent and dependable bag handling.

Technical Specifications
Machine dimensions (L×W×H) 3350×2560×2700mm (excluding upright bag conveyor and weighing scale)
Applicable bag materials Paper–plastic composite bags, heavy-duty PE film bags, laminated woven bags, aluminum foil bags
Applicable bag styles Flat-top bags, M-gusset, envelope-style bags
Optional closing methods Flexible configuration (e.g., sewing + heat-seal tape; inner heat sealing + folding + sewing)
Applicable bag size Length 700–900 mm Width 450–550 mm
Bag magazine capacity 300bags
Filling range 20-50kg/bag
Capacity 500–800bags/hr (depending on material flow and bulk density)
Power supply AC 220V/380V ±5%, 50 Hz±1%, three-phase four-wire
Peak power 25kW
Air supply 0.5–0.7MPa, 145Nm³/hr, inlet pipe diameter 1inch
Operating temperature –5°C to 40°C, dew point –40°C
Vacuum system Integrated rotary-vane vacuum pump

Specifications are subject to change without prior notice.
Product images may differ from the actual model configuration.
Features
  • Handles 20–50 kg bags at 500–800 bags/hr: Supports medium to high-throughput operations while maintaining stable filling performance.
  • High-efficiency automatic bag presentation: The auto-bag magazine and pick-up system are built for smooth, continuous operation in busy production environments.
  • Independent control and protection for each functional unit: Every module includes coordinated control and safety mechanisms to maintain steady, uninterrupted workflow.
  • Motor-driven actuation for improved operating efficiency: Servo-based movement delivers cleaner bag transfer, more precise positioning, and better overall consistency.
  • Recommended pairing with KS-series heat sealing systems: Combining the 3CM-P with a KS heat sealer enhances the appearance of the sealed bag and helps prevent leakage and air ingress.

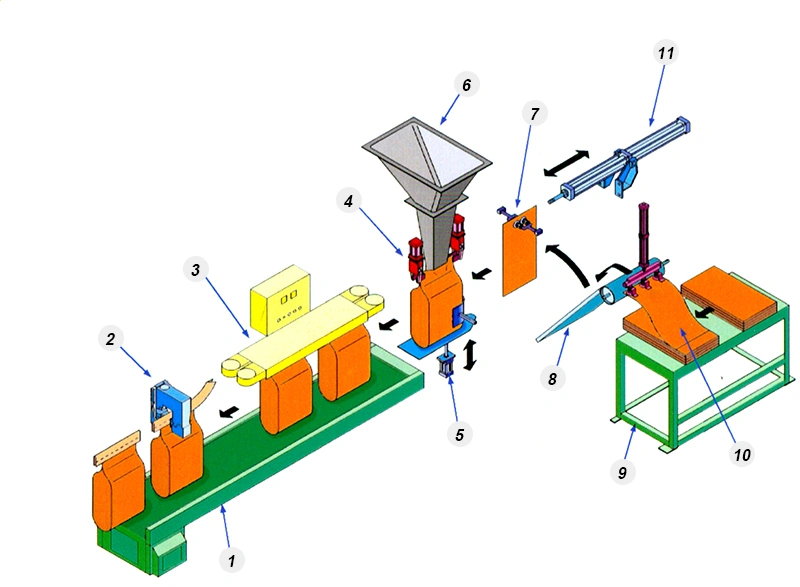

Process Flow Diagram
Process Flow Diagram
  • 1 Upright bag conveyor
  • 2 Bag sewing machine
  • 3 Heat sealer
  • 4 Filling system
  • 5 Bag-bottom flattening device
  • 6 Discharge spout
  • 7 Empty-bag pick-up unit
  • 8 Bag positioning unit
  • 9 Automatic bag magazine & dispenser
  • 10 Packaging bags
  • 11Lateral drive cylinder
