Automatic Open-Mouth Bagging Machine
Request a Quote

3CM-5U

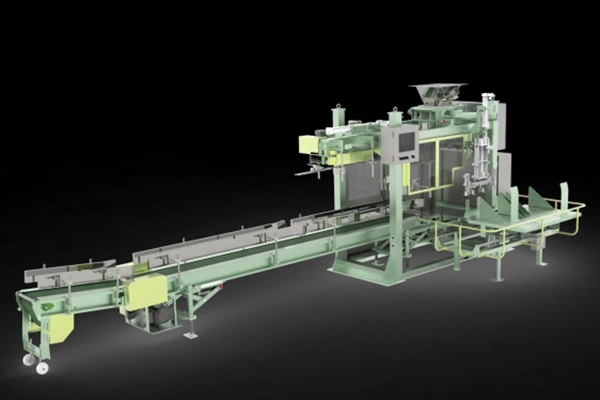

Automatic Open-Mouth Bagging Machine

Fully automatic open-mouth bagger for filling granular and powder products into pre-made open-mouth bags

The automatic open-mouth bagging machine is built for stable, continuous bagging performance across a wide range of packaging materials. It handles paper bags, PE heavy-film bags, and laminated woven bags, and supports flat-top, M-type, and envelope-style bag designs. This flexibility makes it suitable for chemical, feed, grain, and other bulk-material applications that require consistent filling accuracy and reliable downstream integration.

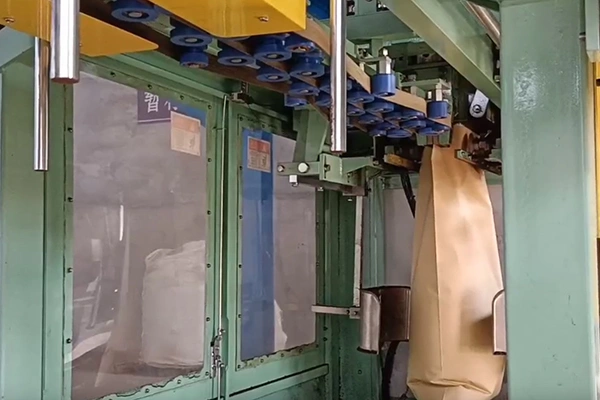

Automatic Open-Mouth Bagging Machine

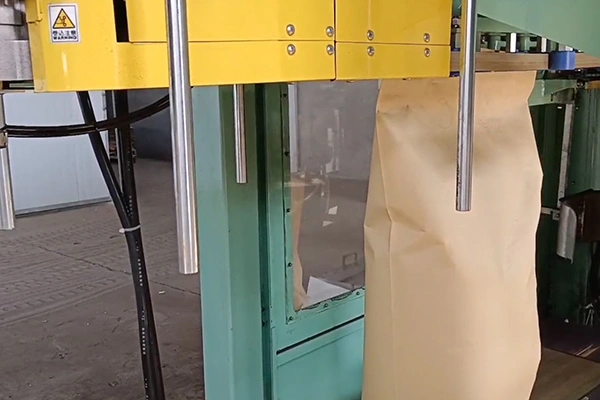

Automatic Open-Mouth Bagging Machine

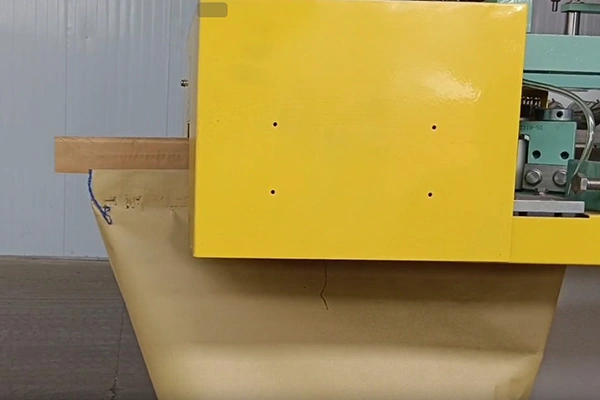

Automatic Open-Mouth Bagging Machine
Technical Specifications
Machine dimensions (L×W×H) 3350×2560×2700mm (excluding upright bag conveyor)
Applicable bag materials Paper–plastic composite bags, heavy-duty PE film bags, laminated woven bags, aluminum foil bags
Applicable bag styles Flat-top bags, M-gusset, envelope-style bags
Optional closing methods Flexible configuration (e.g., sewing + heat-seal tape; inner heat sealing + folding + sewing)
Applicable bag size Length 700–900 mm Width 450–550 mm
Bag magazine capacity 100bags
Filling range 20-40kg/bag
Capacity 200-400bags/hr (depending on material flow and bulk density)
Power supply AC 220V/380V ±5%, 50 Hz±1%, three-phase four-wire
Peak power 15kW
Air supply 0.5–0.7MPa, 105Nm³/hr, inlet pipe diameter 1inch
Operating temperature –5°C to 40°C, dew point –40°C
Vacuum system Integrated rotary-vane vacuum pump

Specifications are subject to change without prior notice.
Product images may differ from the actual model configuration.
Features
  • Handles 20–40 kg filling with an output of 200–400 bags per hour.
  • High-speed automatic bag-feeding unit supports continuous operation with minimal interruption.
  • Each functional module includes dedicated control and safety mechanisms to maintain smooth, coordinated movement.
  • Motor-driven systems deliver stronger, more efficient mechanical performance.
  • Recommended to pair with the KS heat-sealing series for clean, secure, and airtight bag closures.

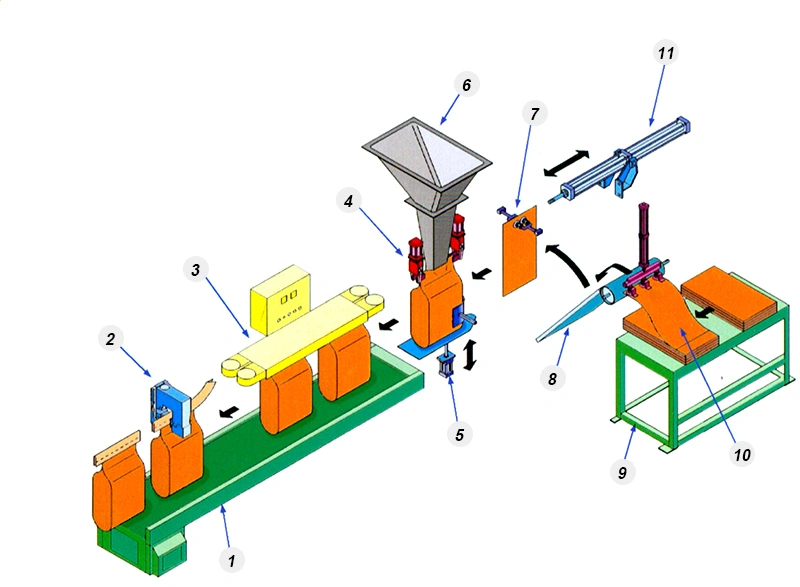

Working Process & Main Components
Working Process & Main Components
  • 1 Upright bag conveyor
  • 2 Bag sewing machine
  • 3 Heat sealer
  • 4 Filling system
  • 5 Bag-bottom flattening device
  • 6 Discharge spout
  • 7 Empty-bag pick-up unit
  • 8 Bag positioning unit
  • 9 Automatic bag magazine & dispenser
  • 10 Packaging bags
  • 11Lateral drive cylinder
