Overedge Sewing Machine

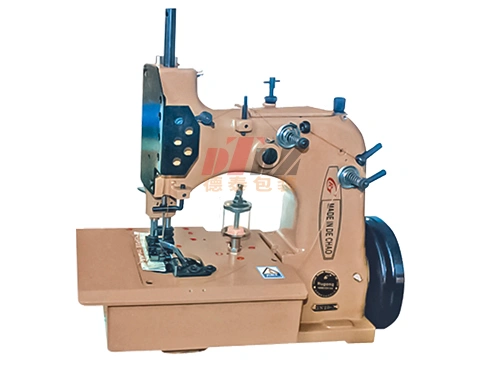

Carpet Overedging Machine (Carpet Serger), 1-Needle 2-Thread
Request a Quote

GN20-2

Carpet Overedging Machine (Carpet Serger), 1-Needle 2-Thread

These carpet overedging machines are designed to create clean and secure edging for carpets of different sizes. They produce a neat stitch that holds well and can also be used for decorative edging on wool coats and similar garments.

Sewing speed 0–1400rpm
Seam thickness 0–14mm
Overedging width 15mm (19mm optional)
Stitch length adjustment 3.5–7mm
Stitch type 2-thread overedge stitch (503), 1 needle
Needle model GN20-230/26#
Applicable thread types jute thread, polypropylene thread
Motor power 370W
Machine weight 31kg
Machine dimensions (L×W×H) 350×215×400mm

Specifications are subject to change without prior notice.
Product images may differ from the actual model configuration.

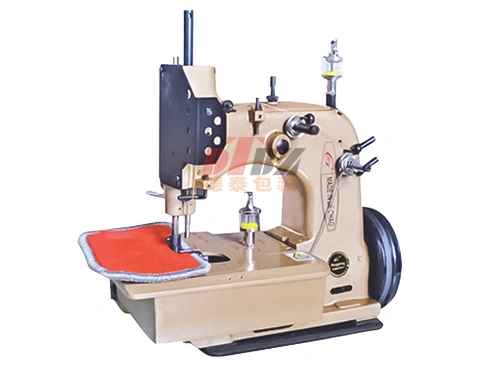

Carpet Overedging Machine (Carpet Serger), 1-Needle 3-Thread
Request a Quote

GN20-2A

Carpet Overedging Machine (Carpet Serger), 1-Needle 3-Thread

Designed for carpet edging, these 1-needle, 3-thread carpet overedging machines create a clean and durable stitch that holds up well in regular production. The stitching works not only for carpets of different sizes but also for decorative edging on wool coats, whether the outline is straight, curved or shaped into smooth arcs.

Overedge Sewing Machine
Sewing speed 0–1400rpm
Seam thickness 0–14mm
Overedging width 15mm (19mm optional)
Stitch length adjustment 3.5–7mm
Stitch type 3-thread overedge stitch (502), 1 needle
Needle model GN20-230/26#
Applicable thread types jute thread, polypropylene thread
Motor power 370W
Machine weight 31kg
Machine dimensions (L×W×H) 350×215×400mm

Specifications are subject to change without prior notice.
Product images may differ from the actual model configuration.

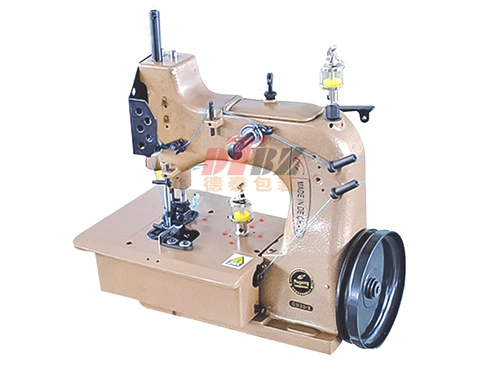

Jute Sack/Woven Bag Overedging Machine, 1-Needle 2-Thread
Request a Quote

GN20-3

Jute Sack/Woven Bag Overedging Machine, 1-Needle 2-Thread

Designed for edging jute sacks and woven bags, these Jute Sack/Woven Bag Overedging Machines (1-Needle 2-Thread) create a neat and durable seam that works well across different bag sizes and stays reliable in everyday packaging work.

Designed for edging jute sacks and woven bags, these bag overedging machines (1-needle 2-thread) create a neat and durable seam that handles different bag sizes with ease. The stitch holds its shape well, keeping the edge stable during regular packaging work.

Overedge Sewing Machine
Sewing speed 0–1400rpm
Seam thickness 0–14mm
Overedging width 20mm
Stitch length adjustment 7–16mm
Stitch type 2-thread overedge stitch (503), 1 needle
Needle model GN20-400/33#
Applicable thread types jute thread, nylon thread
Motor power 370W
Machine weight 31kg
Machine dimensions (L×W×H) 350×215×400mm

Specifications are subject to change without prior notice.
Product images may differ from the actual model configuration.
